Overview
What is a Zero Liquid Discharge Plant (ZLD)?
Bharti Enviro's ZLD plants integrate biological treatment, RO concentration, mechanical vapour recompression (MVR) or multiple-effect evaporation (MEE), and agitated thin-film dryers (ATFD) to achieve total liquid elimination — converting wastewater into a dry, landfill-able salt cake and clean condensate returned to process. ZLD is mandated by CPCB for textile, pharmaceutical, and chemical clusters discharging to water-stressed or coastal zones.
Key Features
- Complete ZLD train: ETP → RO → MEE/MVR → ATFD — 100% liquid elimination
- RO concentration achieves 15–25% TDS brine before thermal evaporation stage
- MVR compressor-driven vapour recompression reduces steam consumption by 60% vs MEE
- Condensate purity < 10 mg/L TDS — directly reusable as process water
Technical Specifications
Engineering Parameters
- Capacity range
- 100 KLD – 10 MLD
- RO recovery in ZLD loop
- 70–80%
- MEE evaporation rate
- 5,000–50,000 kg/hr
- ATFD outlet
- Dry salt cake, ≥ 95% DS
- Condensate TDS
- < 10 mg/L
- Regulatory mandate
- CPCB ZLD Directive 2016; State SPCB consent
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

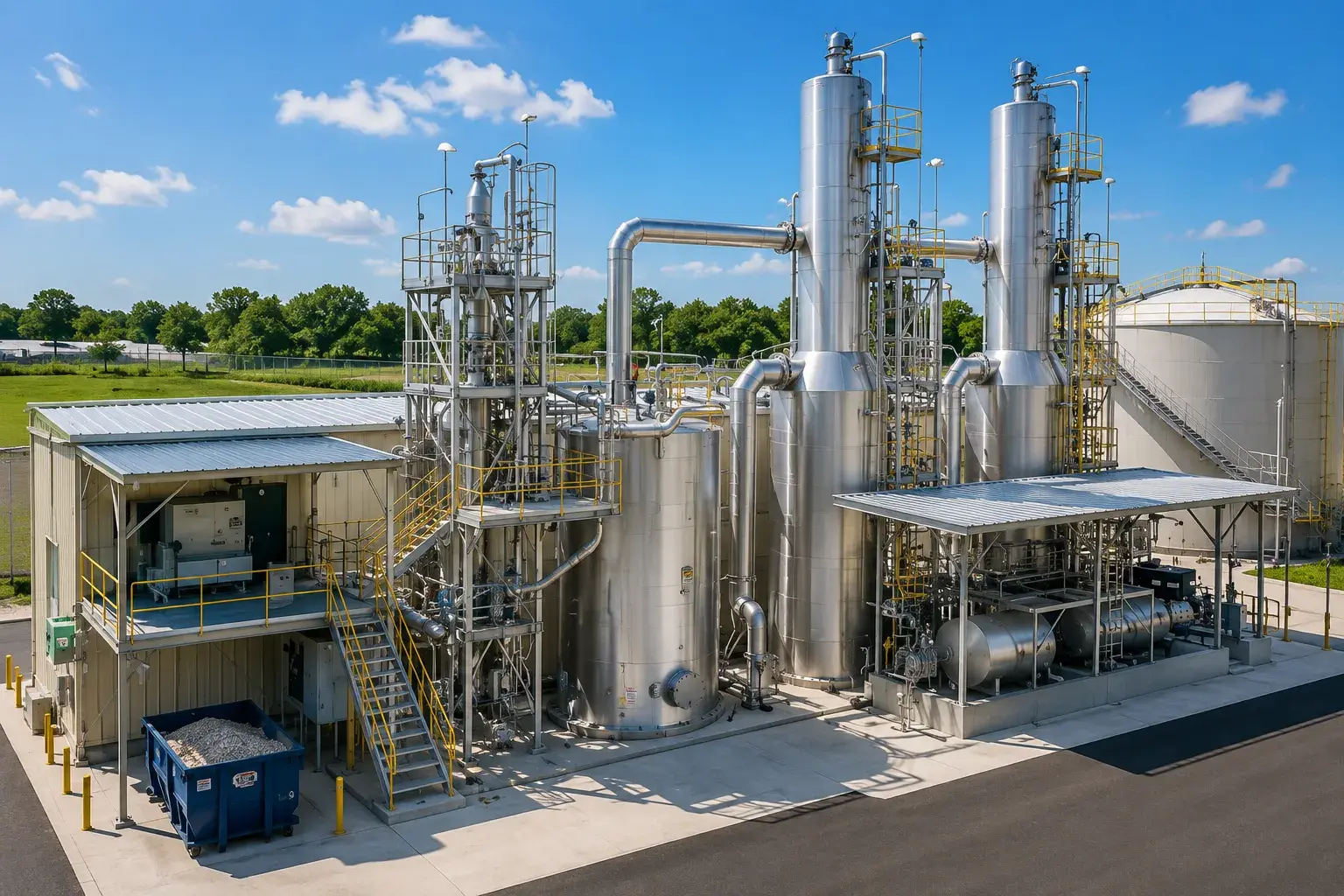

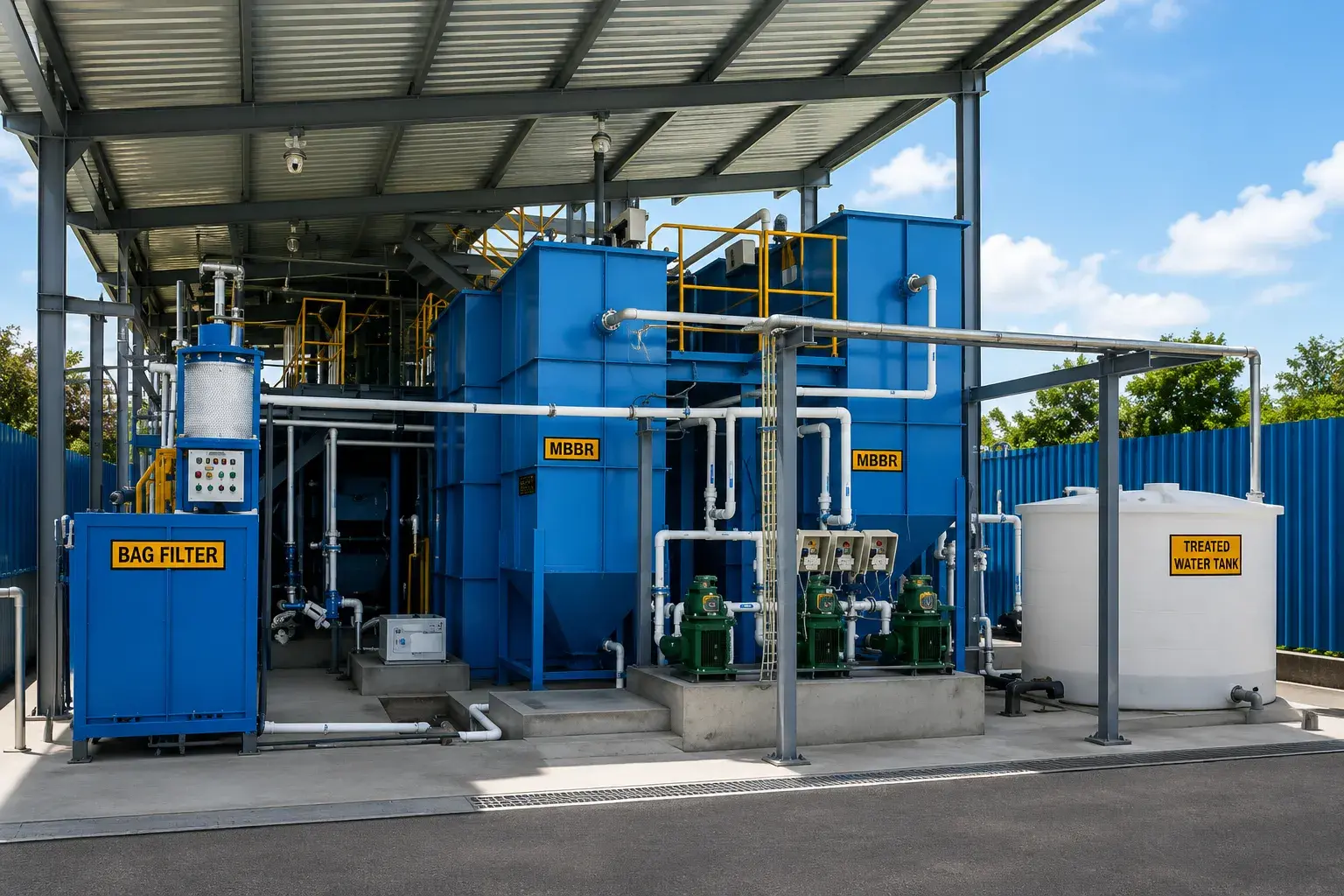

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
Applications
Industries Served
Our Zero Liquid Discharge Plant (ZLD) is deployed across a wide range of industrial and municipal applications.
