What is a Cyclone Dust Collectors?
Bharti Enviro's cyclone separators use centrifugal force to separate particulates ≥ 5 µm from gas streams without filter media or water, making them a low-maintenance first stage in multi-stage dust-collection systems. High-efficiency multi-cyclone (multi-tube) arrangements extend collection to particles down to 3 µm at pressure drops of 1,000–2,500 Pa, reducing downstream bag-filter or ESP load.
Key Features
- No moving parts — virtually zero maintenance for continuous high-temperature duty
- Multi-tube cyclone arrays extend collection to 3 µm at > 90% efficiency
- High-temperature construction (MS, alloy steel) for kiln and furnace off-gas up to 500°C
- Tangential or axial inlet design optimised for flow regime and space constraints
Technical Specifications
Engineering Parameters
- Gas flow range
- 500 Nm³/hr – 1,000,000 Nm³/hr
- Collection efficiency
- 70–90% (single); 85–97% (multi-tube) at ≥ 10 µm
- Cut size
- 5–15 µm (single); 3–7 µm (multi-tube)
- Temperature rating
- Up to 500°C (alloy steel)
- Pressure drop
- 500–2,500 Pa
- MOC
- MS, SS 304, alloy steel, cast iron
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

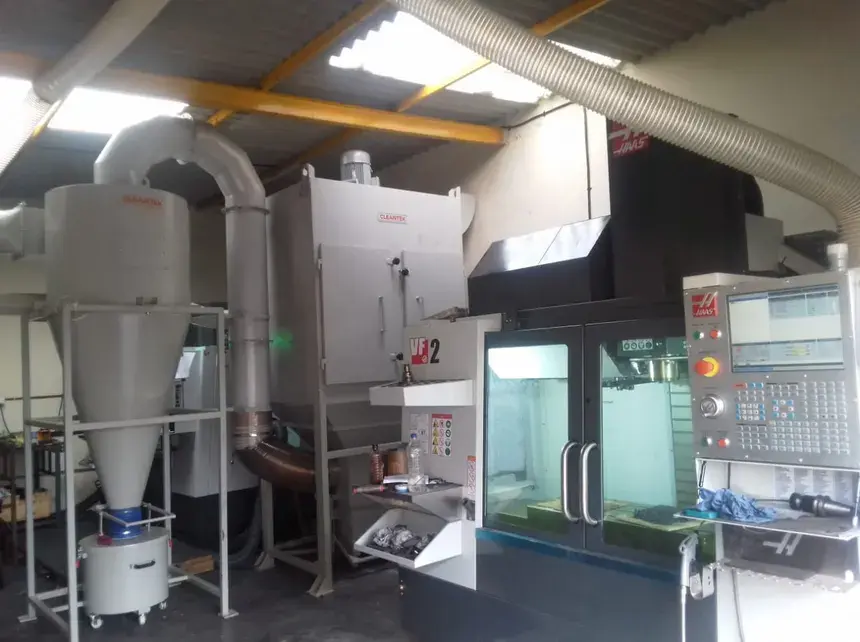

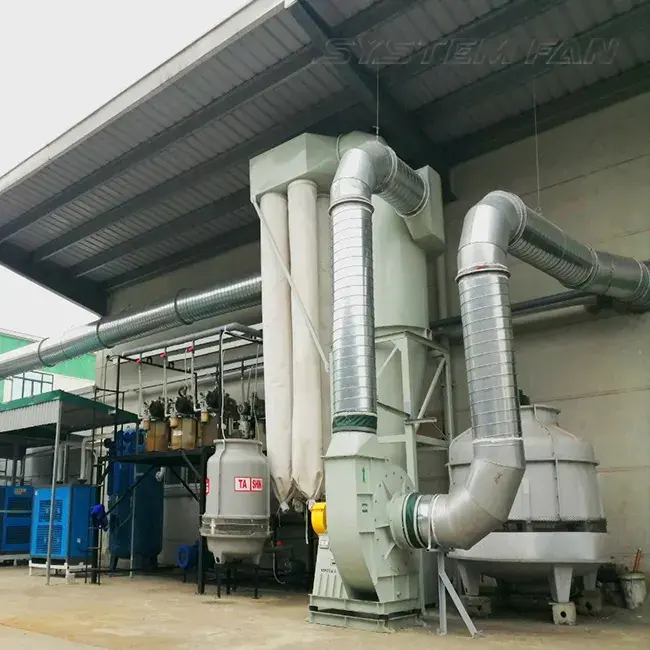

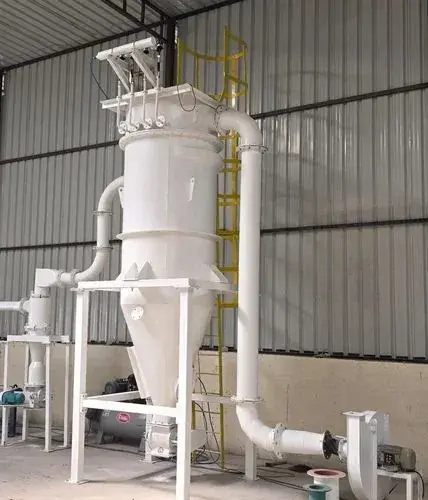

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Cyclone Dust Collectors is deployed across a wide range of industrial and municipal applications.
Cement and mineral processingSteel and foundry off-gasGrain handling and flour millsBiomass and wood processingCeramics and refractoriesChemical powder production
