Overview
What is a Sewage Treatment Plant (STP)?
Bharti Enviro engineers sewage treatment plants across the capacity spectrum — from compact package units for housing societies to large-scale municipal schemes — using proven activated-sludge, MBBR, SBR, or MBR technologies. All designs target CPCB/SPCB discharge standards or tertiary reuse quality for irrigation and toilet flushing under municipal STP guidelines.
Key Features
- Technology selection (AS/MBBR/SBR/MBR) optimised for site footprint and reuse goals
- BOD outlet < 10 mg/L and TSS < 10 mg/L achievable with MBR configuration
- Sludge dewatering by screw press or belt press to ≥ 20% DS cake
- SCADA with remote monitoring via CPCB-standard online effluent monitoring (OEM) nodes
Technical Specifications
Engineering Parameters
- Capacity range
- 5 KLD – 100 MLD
- BOD removal
- ≥ 95% (outlet < 20 mg/L CPCB class A)
- COD removal
- ≥ 90%
- TSS outlet
- < 30 mg/L (< 10 mg/L MBR)
- Sludge cake DS
- ≥ 20% (screw press dewatering)
- Design standard
- CPHEEO Manual; CPCB STP Guidelines 2017
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

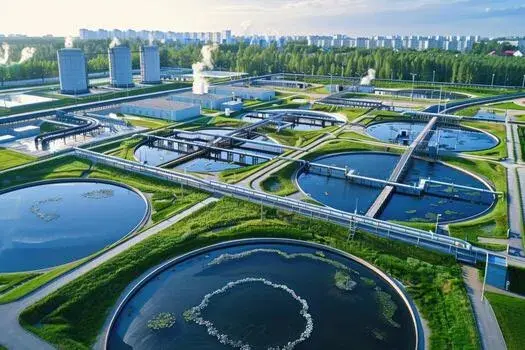

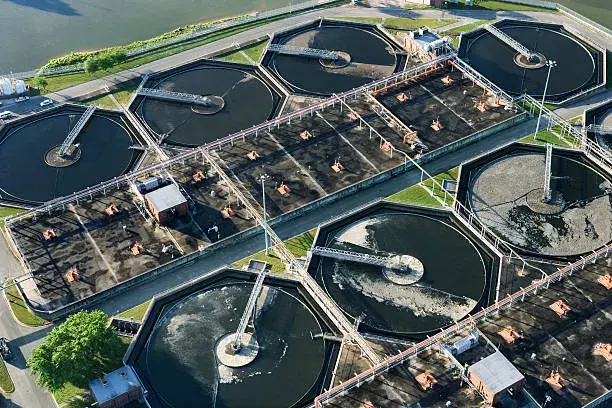

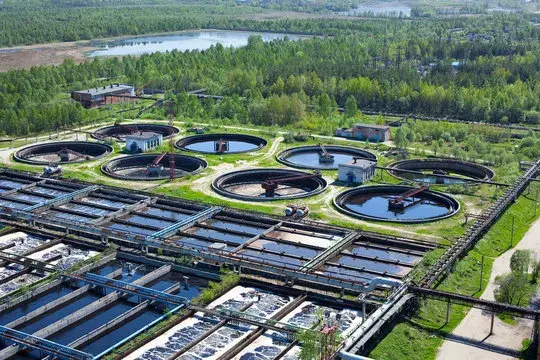

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Sewage Treatment Plant (STP) is deployed across a wide range of industrial and municipal applications.
Residential townships and housing societiesMunicipal sewage schemesHotels, resorts, and hospitalityHospitals and healthcare campusesCommercial complexes and IT parksEducational institutions
