Overview
What is a Modular / Prefabricated ETP?
Our modular prefabricated ETPs bring the same factory-build advantage to industrial effluent management — providing rapid-deployment compliance solutions for small and medium enterprises that cannot wait for conventional civil construction. Each module is pre-piped, pre-wired, and hydro-tested at our works to a specific effluent profile, then shipped ready for electrical connection.
Key Features
- Pre-engineered to site-specific effluent composition — no generic modules
- Integrated physico-chemical + biological stages in single or twin containers
- CE-marked control panel with GSM alarm and remote monitoring
- Expandable — add capacity modules without process shutdown
Technical Specifications
Engineering Parameters
- Standard capacities
- 2 KLD, 5 KLD, 10 KLD, 25 KLD, 50 KLD
- BOD removal
- ≥ 90%
- COD removal
- ≥ 85%
- Installation time
- 3–7 days on site
- Container frame
- ISO 20-ft, MS hot-dip galvanised
- Power requirement
- 3-phase, 415 V, 50 Hz
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

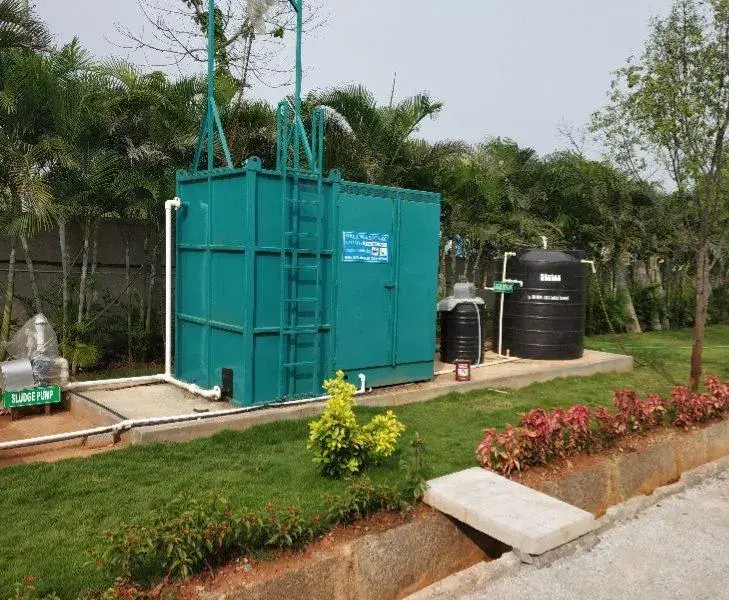

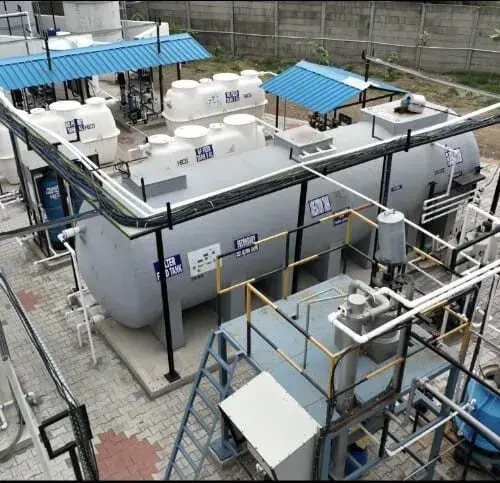

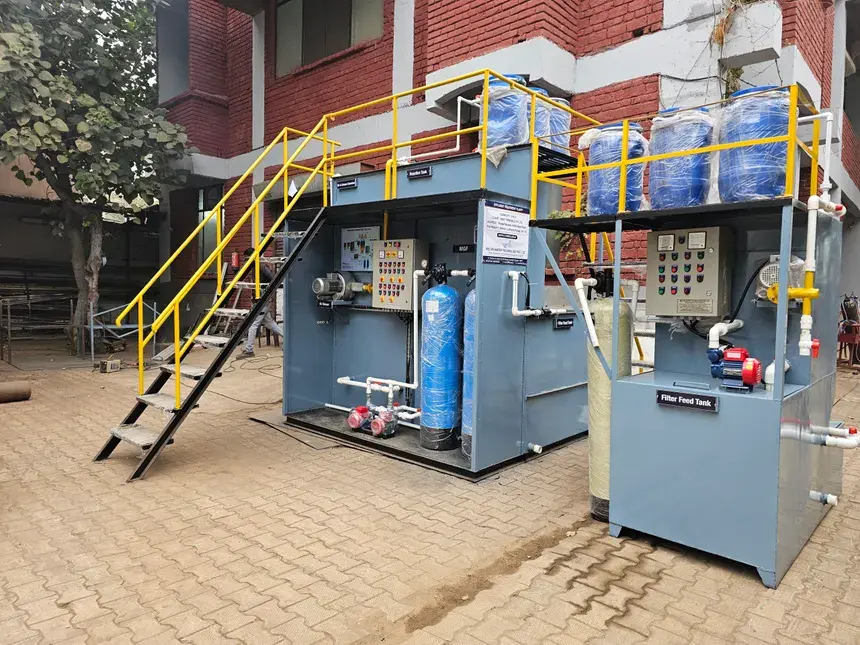

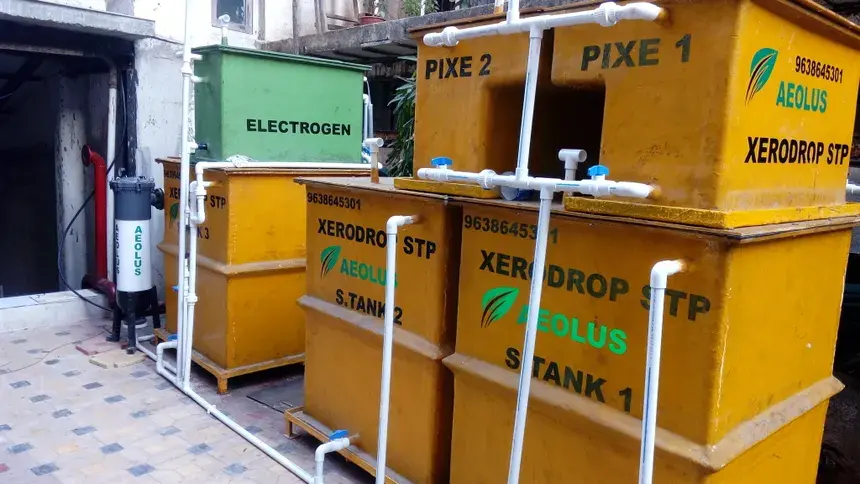

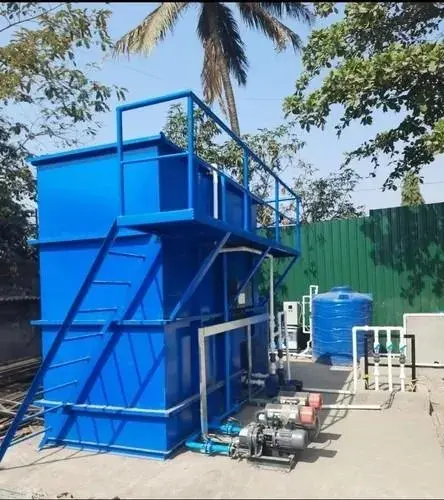

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Modular / Prefabricated ETP is deployed across a wide range of industrial and municipal applications.
Small and medium manufacturing unitsPharmaceuticals with CPCB consent requirementsFood processing and dairyAutomobile workshops and service centresHotels and resorts in SPCB-regulated zonesIndustrial estate common ETPs
