Overview
What is a Tertiary Treatment Plant?
Our tertiary treatment plants add a polishing layer — typically dual-media filtration, activated carbon adsorption, and UV or ozone disinfection — downstream of secondary biological treatment to achieve reuse-quality effluent for toilet flushing, landscape irrigation, or industrial process water. Bharti Enviro designs tertiary trains to Green Building (LEED/IGBC) reuse specifications and CGWB non-potable standards.
Key Features
- Dual-media + activated carbon removes residual BOD, TSS, and trace organics post-secondary
- UV (254 nm) or ozone disinfection eliminates pathogens for safe non-potable reuse
- Turbidity outlet < 1 NTU and E. coli < 10 CFU/100 mL for CGWB non-potable standards
- Supports LEED WE credits for treated effluent reuse in commercial buildings
Technical Specifications
Engineering Parameters
- Capacity range
- 50 KLD – 50 MLD
- Feed (secondary effluent)
- BOD < 30 mg/L; TSS < 30 mg/L
- Outlet BOD
- < 5 mg/L
- Outlet turbidity
- < 1 NTU
- E. coli outlet
- < 10 CFU/100 mL
- UV dose
- ≥ 40 mJ/cm²
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

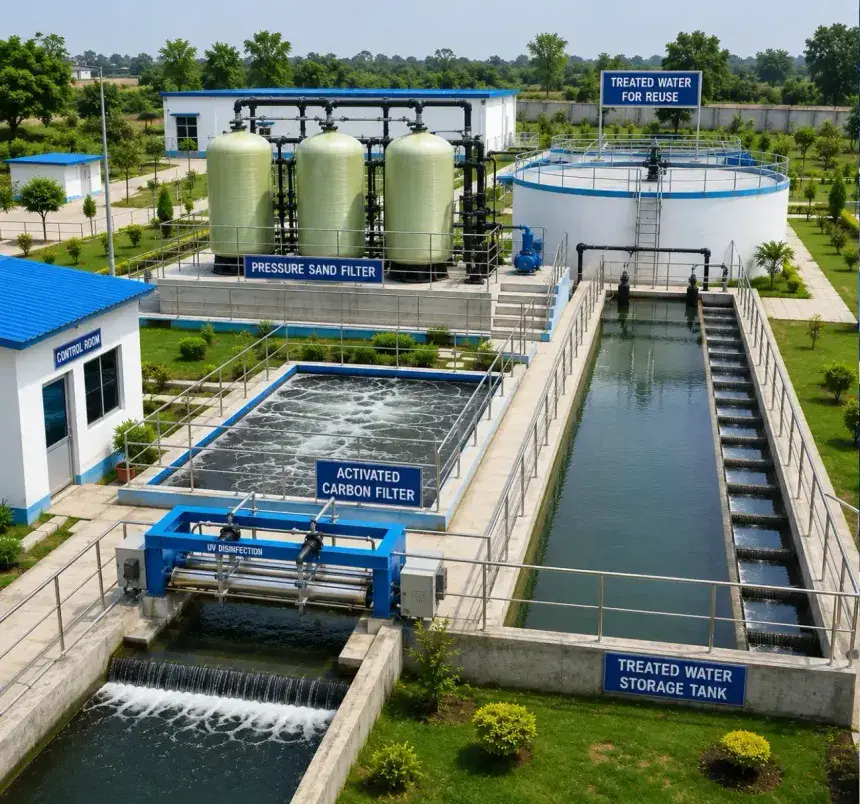

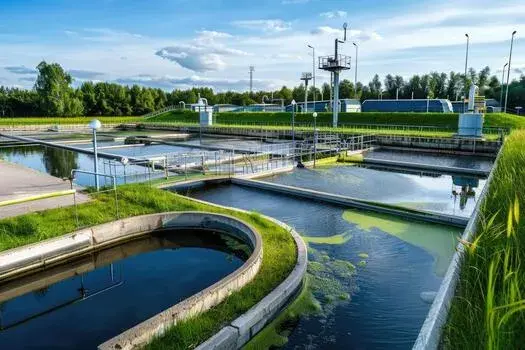

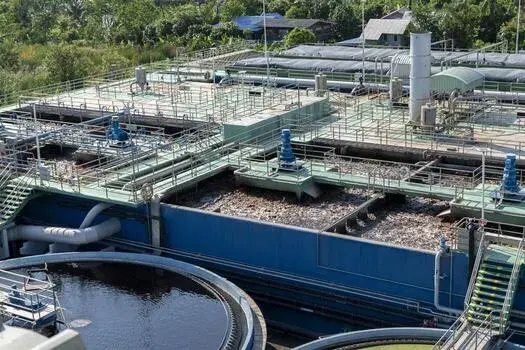

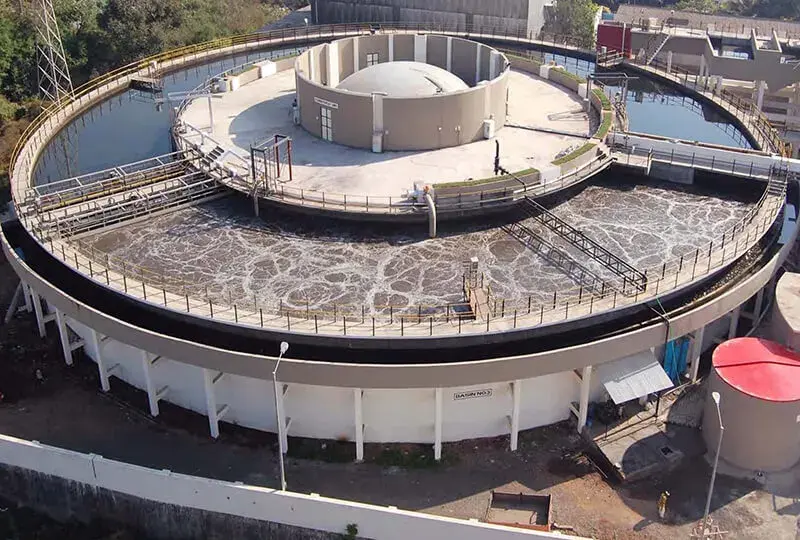

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Tertiary Treatment Plant is deployed across a wide range of industrial and municipal applications.
Municipal STP upgrades for reuseIndustrial ETP polishing for in-plant reuseGreen building water recyclingGolf courses and landscape irrigationCooling tower make-up waterConstruction water supply
