Overview
What is a STP — MBR Base Plant?
Bharti Enviro's MBR STPs integrate submerged hollow-fibre or flat-sheet ultrafiltration membranes directly within the aeration zone, eliminating secondary clarifiers and producing consistently clean effluent with TSS below 5 mg/L and turbidity below 1 NTU — directly reusable for toilet flushing and irrigation. The combined biological-membrane unit reduces plant footprint by up to 50% versus conventional activated-sludge systems.
Key Features
- Submerged hollow-fibre or flat-sheet UF membranes (0.04 µm) in bioreactor
- Effluent TSS < 5 mg/L and turbidity < 1 NTU without secondary clarifier
- Footprint 40–50% smaller than equivalent conventional STP
- Phosphorus removal via chemical dosing integrated in the control sequence
Technical Specifications
Engineering Parameters
- Capacity range
- 5 KLD – 5 MLD
- Membrane pore size
- 0.04 µm (hollow fibre / flat sheet)
- TSS outlet
- < 5 mg/L
- BOD outlet
- < 5 mg/L
- Turbidity outlet
- < 1 NTU
- Footprint reduction
- 40–50% vs conventional STP
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

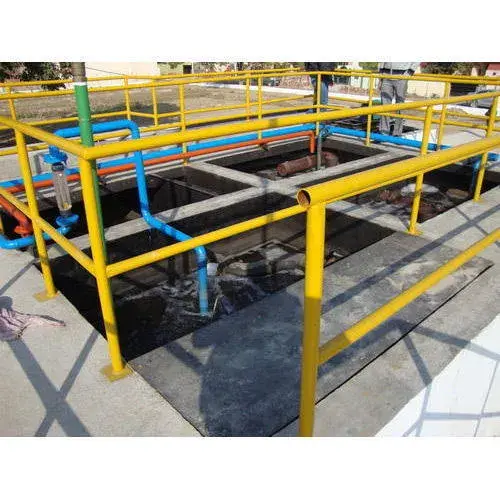

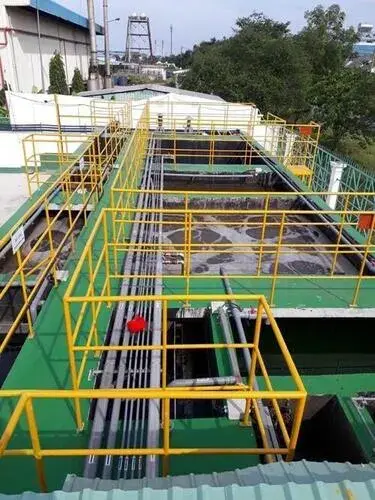

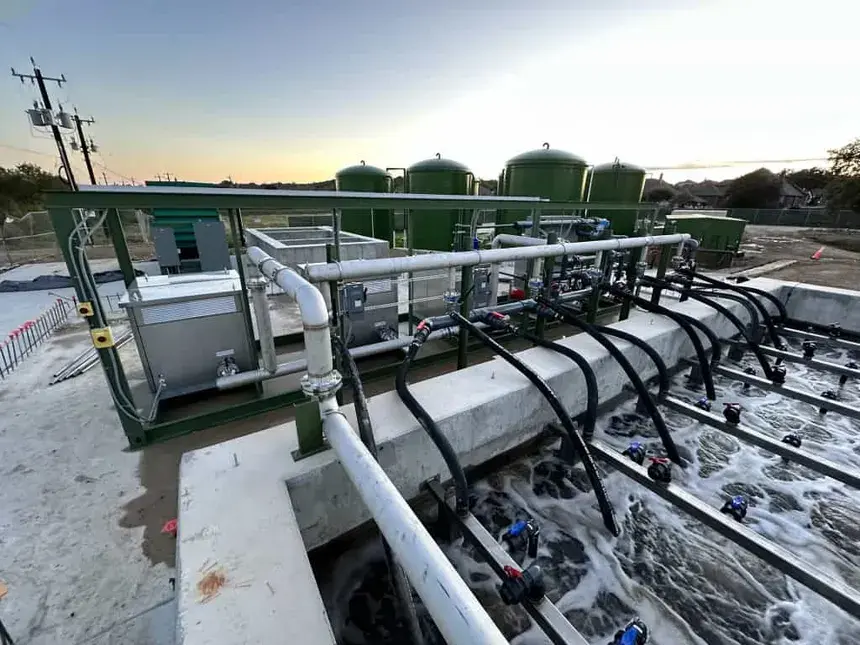

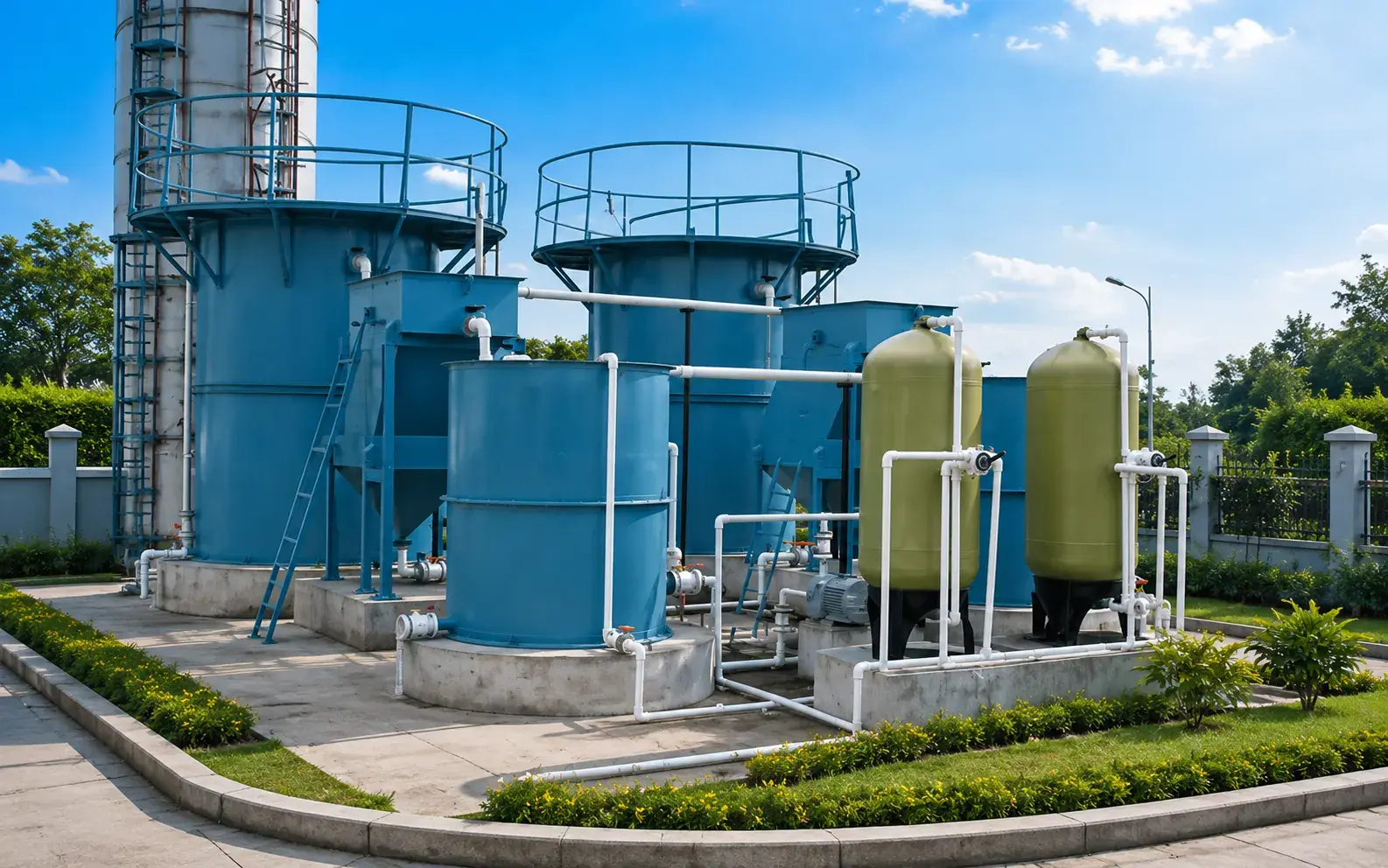

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our STP — MBR Base Plant is deployed across a wide range of industrial and municipal applications.
High-value reuse applicationsLand-constrained urban sitesLuxury hotels and resortsHospitals and pharmaceutical campusesSmart city STP upgradesExport processing zones
