Overview
What is a STP — MBBR Base Plant?
The MBBR-based STP from Bharti Enviro harnesses free-floating polyethylene biofilm carriers to sustain high biomass concentrations without sludge recycle complexity, making it the ideal upgrade path for existing plants lacking clarifier space. MBBR stages can be retrofitted into existing aeration tanks to double treatment capacity with minimal civil work.
Key Features
- Plastic HDPE carriers (350–500 m² effective area/m³) sustain 6,000–8,000 mg/L MLSS equivalent
- No sludge recycle requirement — simplified operation and lower OPEX
- Retrofit-ready — can be introduced into existing aeration basins with minimal civil work
- Robust to hydraulic shock loads of up to 3× design flow
Technical Specifications
Engineering Parameters
- Capacity range
- 10 KLD – 10 MLD
- Carrier fill fraction
- 35–67% by volume
- BOD outlet
- < 20 mg/L
- NH₄-N removal
- ≥ 90% (with nitrification carriers)
- HRT (aeration)
- 4–8 hours
- Carrier material
- HDPE, density 0.95 g/cm³
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

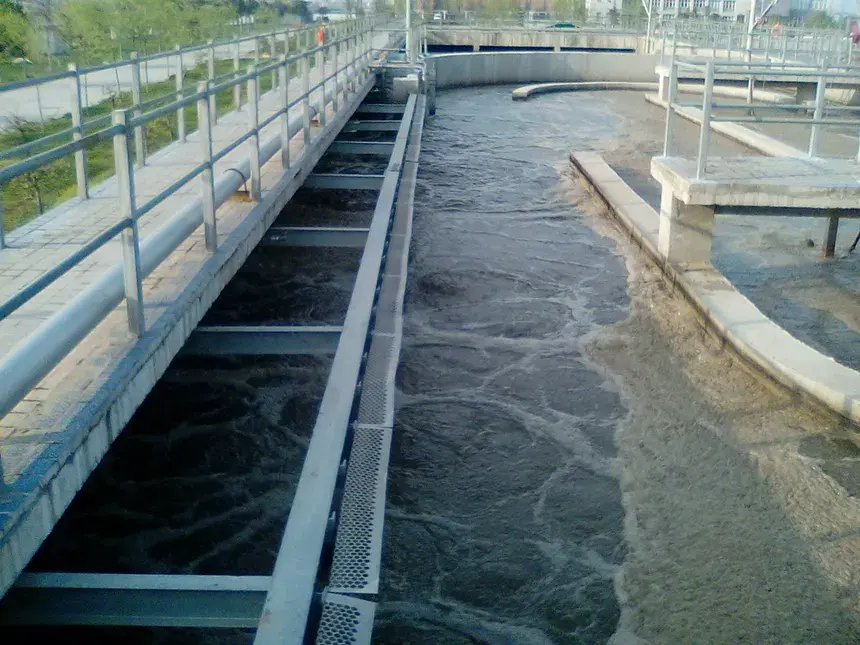

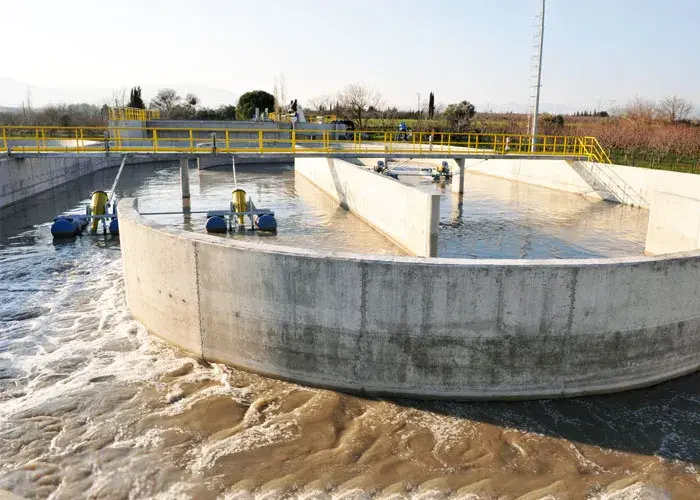

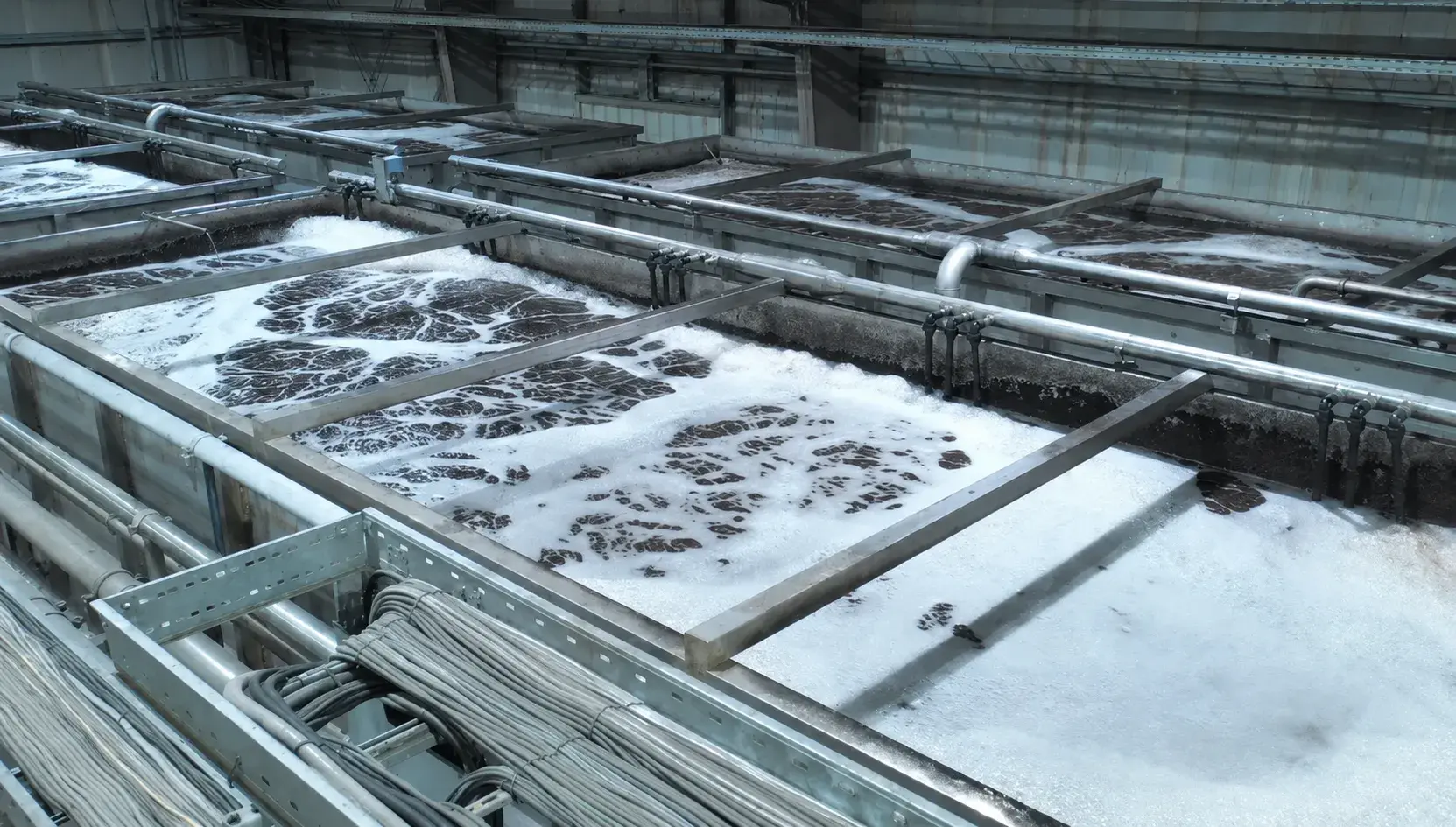

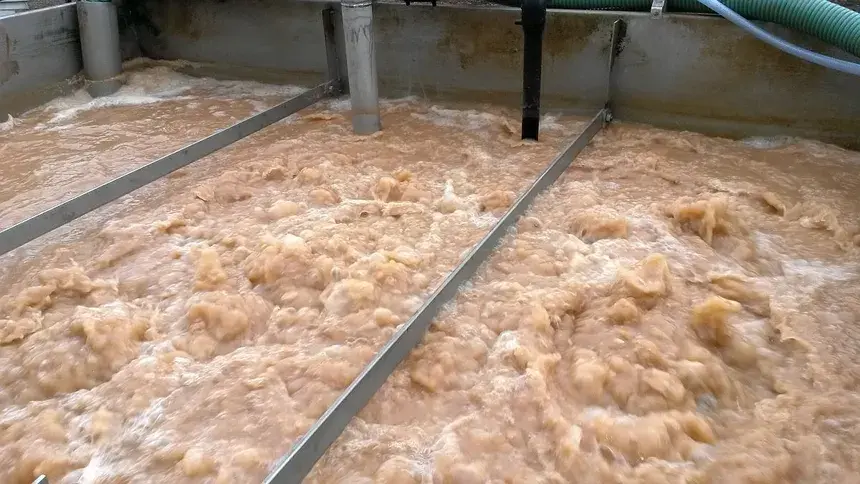

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our STP — MBBR Base Plant is deployed across a wide range of industrial and municipal applications.
Municipal sewage treatmentHousing societies and townshipsHotels and commercial complexesUpgrade of overloaded STPsHospitalsFood processing (lower-strength wastewaters)
