Overview
What is a Multiple Effect Evaporation Plant (MEE)?
Our multiple-effect evaporation systems use steam economy of 4–7 kg water evaporated per kg steam by cascading vapour through falling-film or forced-circulation evaporator bodies in series. MEE plants handle RO concentrate and high-TDS industrial effluents up to 250,000 mg/L TDS, producing a concentrated slurry fed directly to crystallisers or ATFDs for final salt recovery.
Key Features
- Steam economy 4–7× — each effect reuses latent heat of the previous vapour body
- Falling-film or forced-circulation (FC) effect bodies for scaling and fouling resistance
- Thermocompressor (TVC) option boosts steam economy by an additional 30%
- Condensate recovery ≥ 98% — all distillate returned as clean process water
Technical Specifications
Engineering Parameters
- Evaporation capacity
- 1,000–100,000 kg/hr
- Number of effects
- 3–7 (application-specific)
- Steam economy
- 3.5–7.0 kg water/kg steam
- Inlet TDS
- Up to 80,000 mg/L (RO permeate/concentrate)
- Outlet concentration
- Up to 250,000 mg/L TDS (slurry)
- MOC
- SS 316L or titanium (corrosive streams)
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

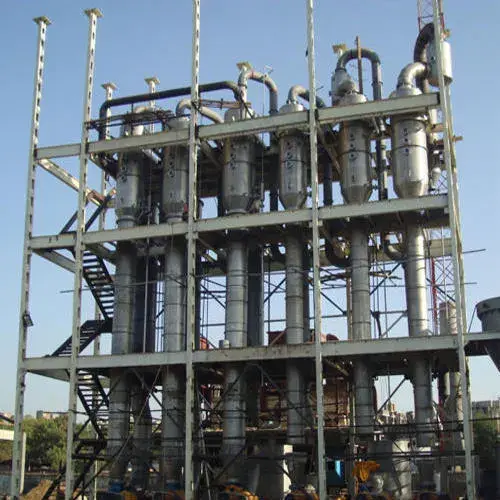

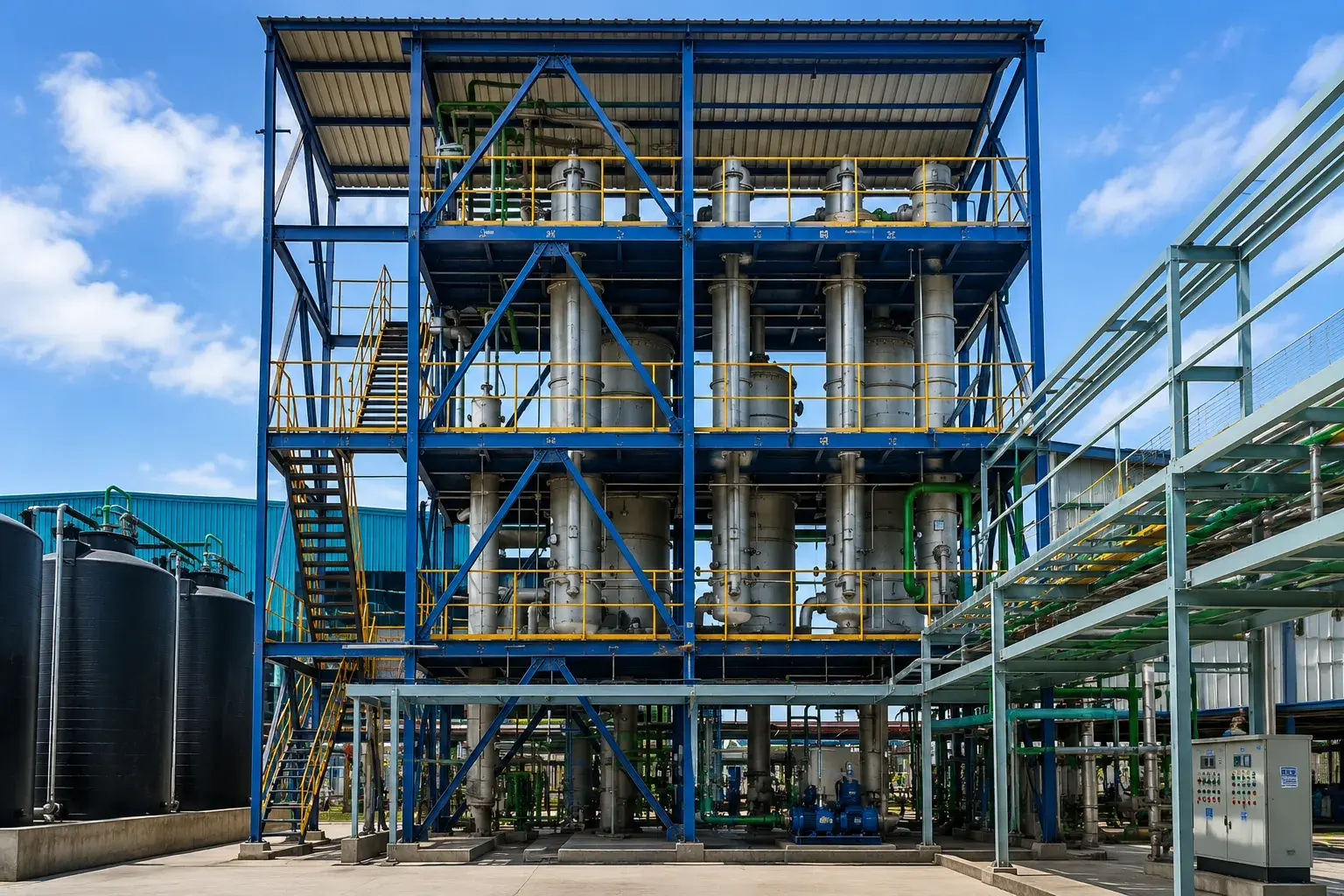

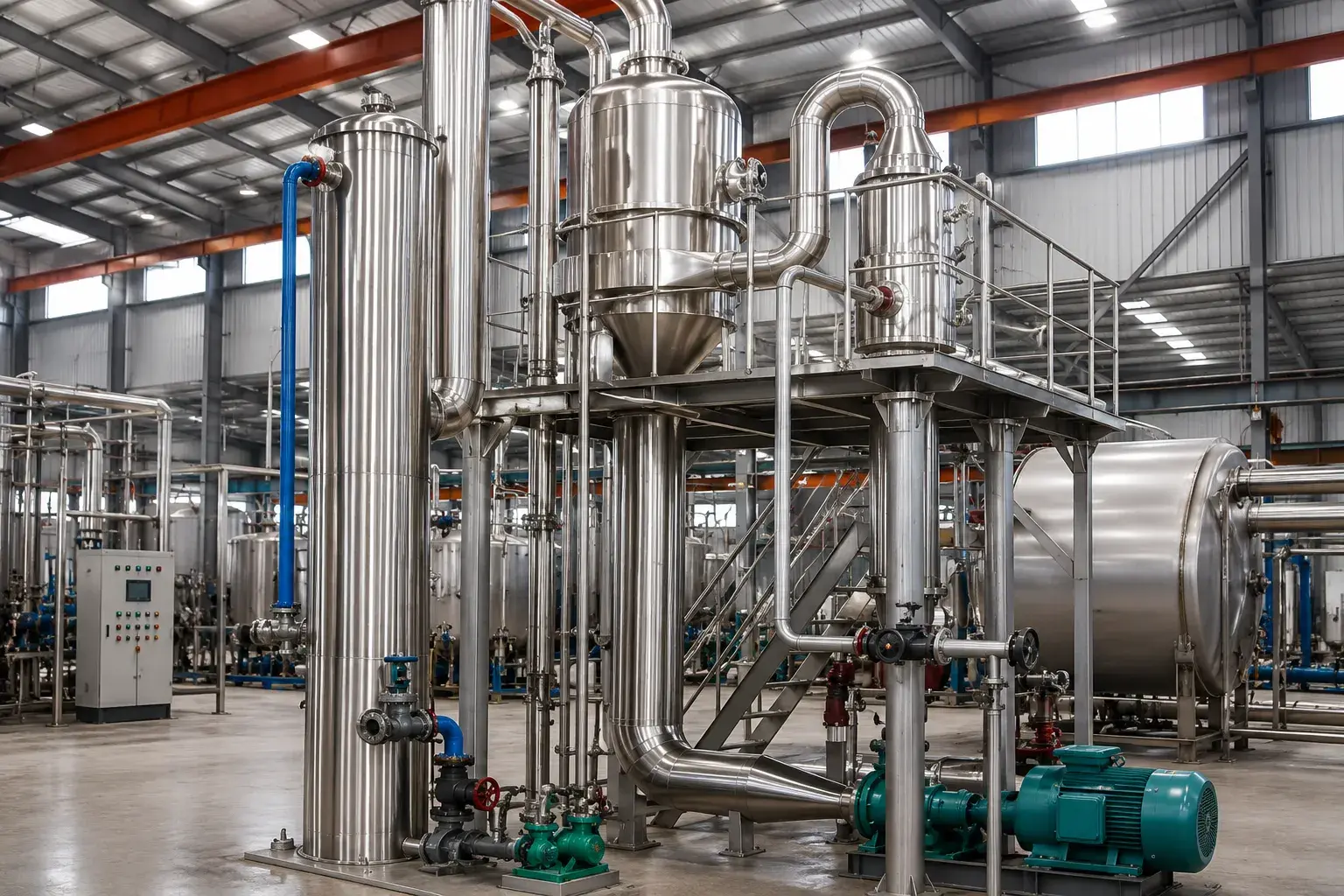

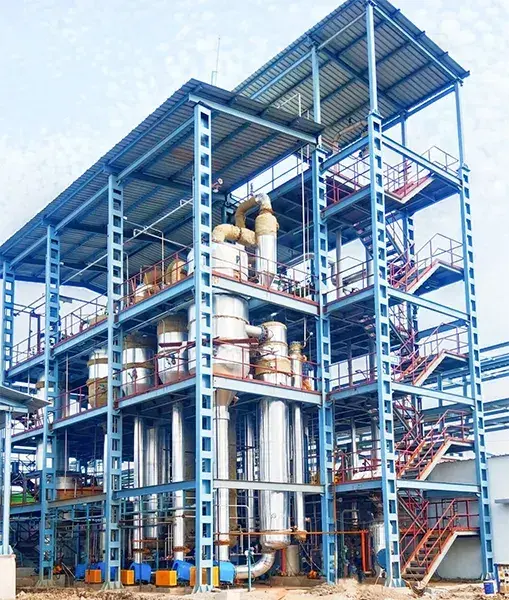

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Multiple Effect Evaporation Plant (MEE) is deployed across a wide range of industrial and municipal applications.
ZLD final concentration stageSalt recovery from process effluentsPharmaceutical mother-liquor treatmentDistillery spent-wash concentrationFGD wastewater treatment in powerDairy and food byproduct recovery
