What is a Fume Extraction System?
Bharti Enviro designs and installs fume extraction systems for welding bays, chemical reactors, and industrial process vessels — combining downdraft tables, canopy hoods, on-gun extractors, and lateral suction slots to capture hazardous fumes before they enter the operator's breathing zone. All systems are designed per ACGIH industrial ventilation guidelines and include appropriate filtration to meet CPCB stack-emission norms.
Key Features
- On-gun extraction captures ≥ 85% of welding fume at source before workplace dispersion
- Downdraft bench and side-draft booth configurations for benchtop operations
- Cartridge filter with HEPA stage achieves outlet < 1 mg/Nm³ total particulate
- Fan selection matched to hood capture velocity ≥ 0.5 m/s at furthest source point
Technical Specifications
Engineering Parameters
- Capture velocity
- ≥ 0.5 m/s at source (ACGIH guideline)
- Airflow range
- 500 – 50,000 m³/hr (system)
- Filter efficiency
- ≥ 99.97% at 0.3 µm (HEPA H13)
- Outlet emission
- < 5 mg/Nm³ at stack
- Fan type
- Backward-curved centrifugal, TEFC motor
- Design standard
- ACGIH Industrial Ventilation Manual; IS 3483
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

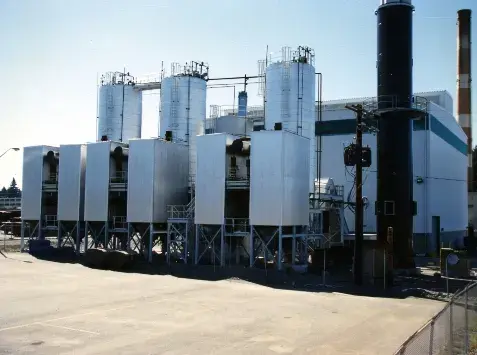

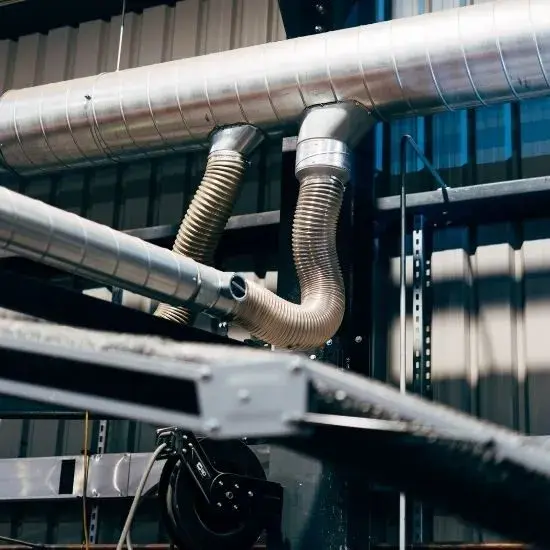

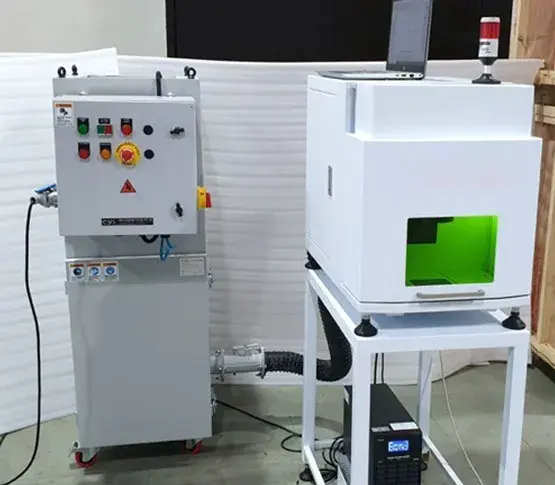

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Fume Extraction System is deployed across a wide range of industrial and municipal applications.
Welding fabrication shopsChemical reactor ventingPharmaceutical dispensing areasBattery and lead-acid manufacturingSoldering and PCB assemblyAutomotive paint prep and coating
