Overview
What is a ETP — MBBR Base Plant?
Bharti Enviro's MBBR-based effluent treatment plants are designed for industrial wastewaters characterised by variable organic loads and intermittent shock discharges. The biofilm carriers provide stable treatment performance across COD loadings up to 20 kg/m³/day, making MBBR ETPs a preferred choice for pharmaceutical, chemical, and food-processing dischargers.
Key Features
- Biofilm carriers sustain treatment through batch discharge peaks and start-stop operation
- COD loading up to 20 kg BOD/m³/day — 3–5× conventional activated sludge
- Combined aerobic MBBR + anoxic selector for nitrogen removal from pharmaceutical effluent
- Sludge production 30–40% lower than conventional AS — reduced disposal cost
Technical Specifications
Engineering Parameters
- Capacity range
- 10 KLD – 5 MLD
- COD inlet
- Up to 20,000 mg/L (with dilution or pre-treatment)
- COD removal
- ≥ 90%
- BOD outlet
- < 30 mg/L
- Sludge production
- 0.2–0.3 kg VSS/kg BOD removed
- Carrier area
- 350–500 m²/m³
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

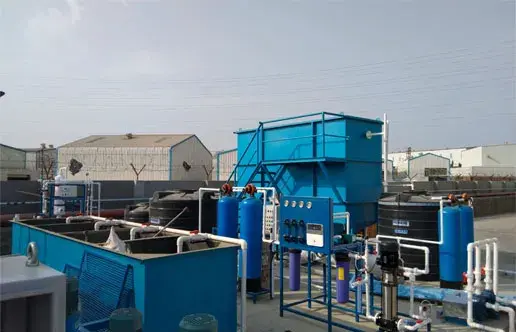

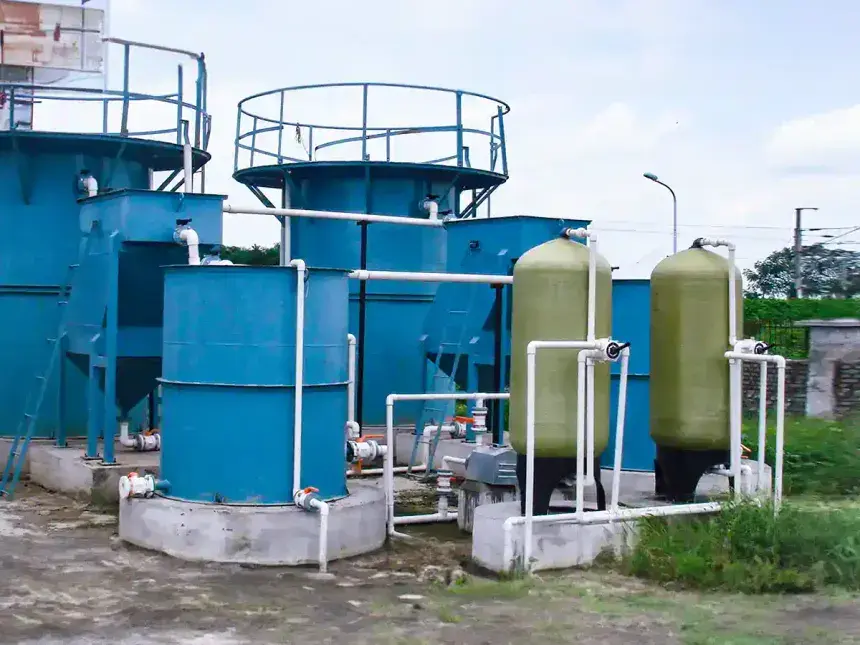

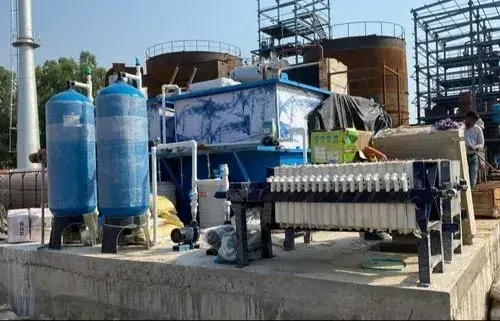

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our ETP — MBBR Base Plant is deployed across a wide range of industrial and municipal applications.
Pharmaceutical APIs and formulationsSpecialty chemicalsBulk drug manufacturingTanneriesPulp and paper millsAgro-chemical manufacturing
