Overview
What is a Bag Filters / ESP (Electro-Static Precipitation)?
Bharti Enviro supplies pulse-jet reverse-air bag filters and two-stage or multi-field electrostatic precipitators (ESP) for fine particulate control on process exhaust and combustion gases. Bag filters with woven PTFE or glass-fibre bags achieve outlet PM < 10 mg/Nm³ on sub-micron dusts; ESP systems handle high-temperature, high-volume gas streams where fabric bags are unsuitable.
Key Features
- Pulse-jet bag filter: < 10 mg/Nm³ outlet for sub-micron pharmaceutical and chemical dusts
- ESP multi-field: ≥ 99.9% collection efficiency on fly ash and cement kiln dust
- High-temperature woven PTFE or glass-fibre bags rated to 260°C continuous service
- ESP rapping system and high-voltage TR-sets with microprocessor control for optimal SCA
Technical Specifications
Engineering Parameters
- Gas flow range
- 1,000 – 5,000,000 Nm³/hr
- Outlet PM (bag filter)
- < 10 mg/Nm³
- Outlet PM (ESP)
- < 30 mg/Nm³ (2-field); < 10 mg/Nm³ (3-field)
- Temperature (bags)
- Up to 260°C (PTFE/glass fibre)
- Temperature (ESP)
- Up to 450°C
- Air-to-cloth ratio
- 1.2–2.5 m/min (pulse-jet bags)
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

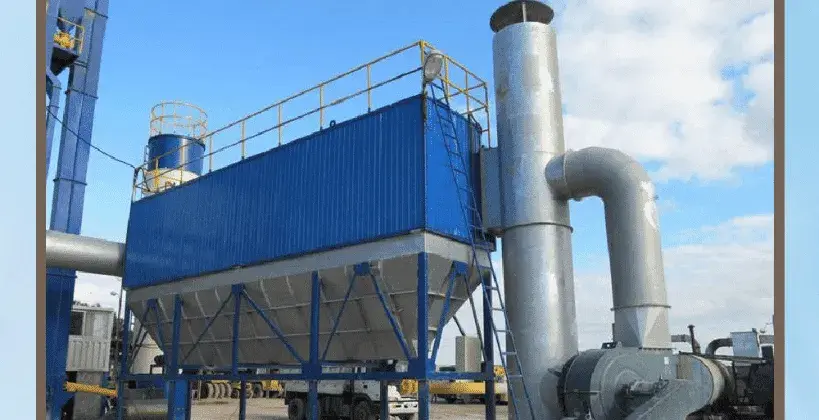

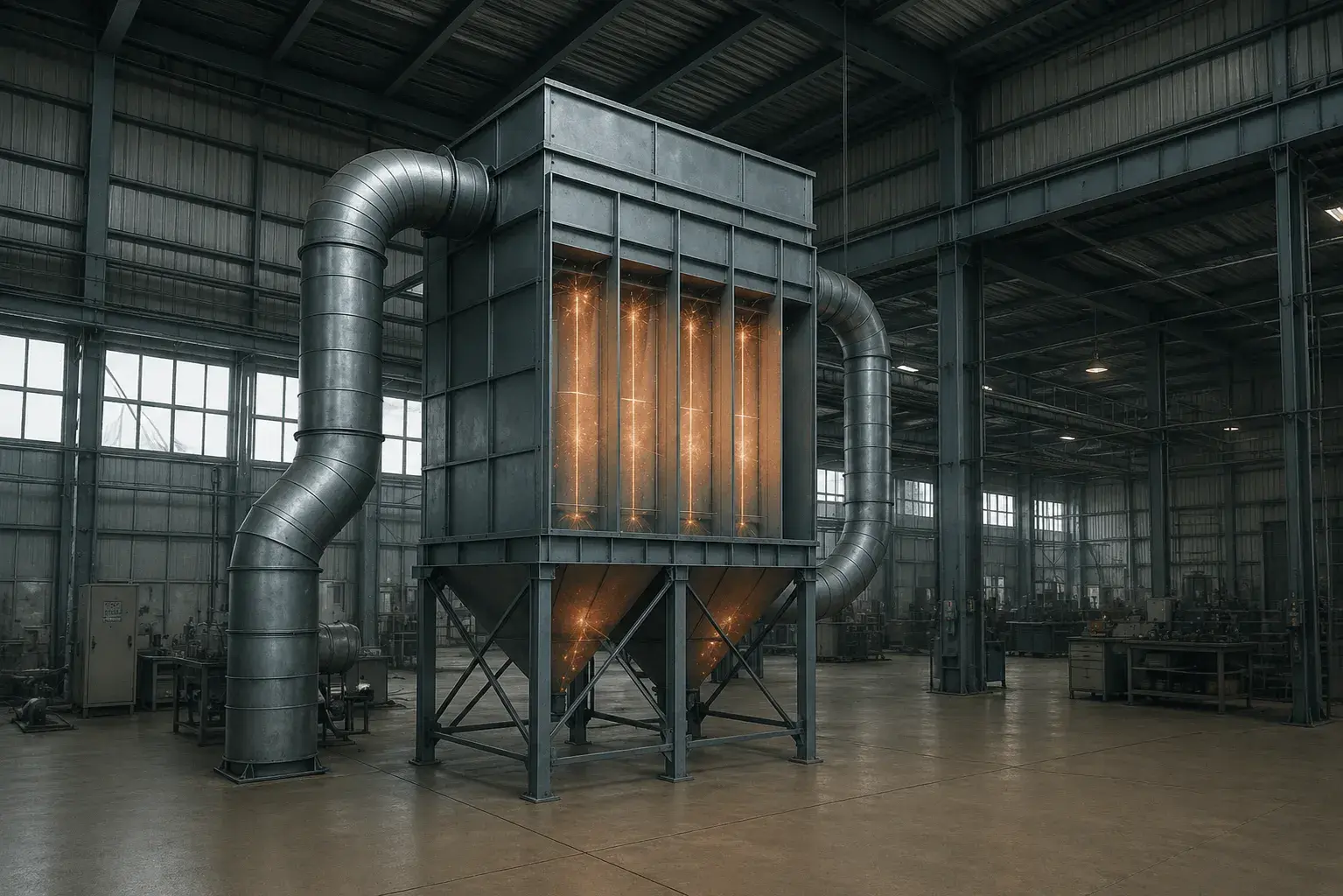

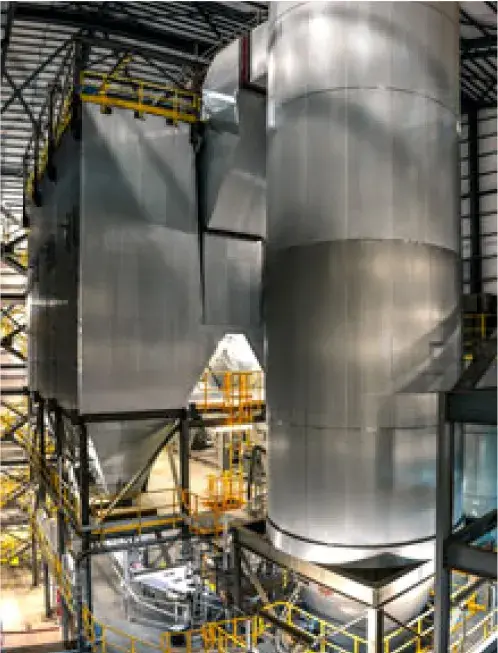

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Bag Filters / ESP (Electro-Static Precipitation) is deployed across a wide range of industrial and municipal applications.
Thermal power stations (fly ash)Cement kilns and raw millsSteel plant sinter and blast-furnace gasChemical and fertiliser dryersPharmaceutical fluid-bed dryersBiomass and waste-to-energy plants
