Overview
What is a Agitated Thin Film Dryer (ATFD)?
Bharti Enviro's ATFDs are the final drying stage in ZLD/MEE trains, converting 25–40% DS concentrate slurries into a free-flowing, dry salt powder suitable for secure landfill or resource recovery. The mechanically agitated rotor spreads feed as a thin film on a steam-heated vessel wall, achieving instantaneous evaporation and short residence times that prevent thermal degradation of heat-sensitive salts.
Key Features
- Product DS ≥ 95% — suitable for direct landfill disposal or salt recovery
- Short residence time (seconds) prevents thermal decomposition of salts
- Stainless-steel 316L or Hastelloy C-276 wetted parts for corrosive streams
- Integrated condenser recovers high-purity distillate for in-plant reuse
Technical Specifications
Engineering Parameters
- Evaporation capacity
- 100–10,000 kg/hr
- Feed DS
- 25–45%
- Product DS
- ≥ 95% dry solids
- Heating medium
- Steam, 4–10 bar (g)
- Rotor tip speed
- 3–6 m/s
- MOC
- SS 316L / Hastelloy C-276
Specifications are indicative. Final parameters confirmed during engineering review.
Gallery

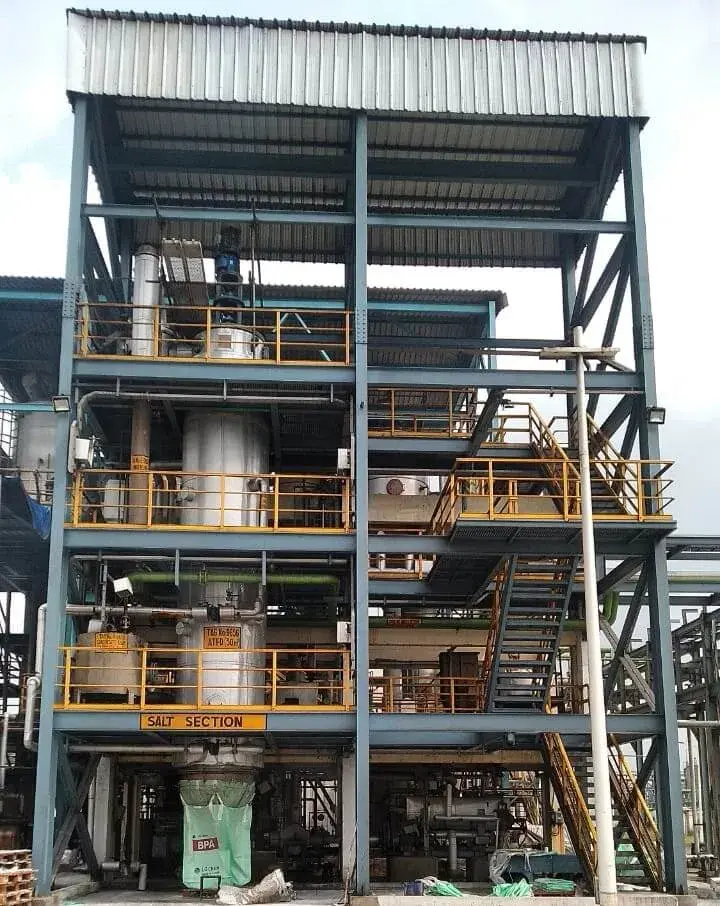

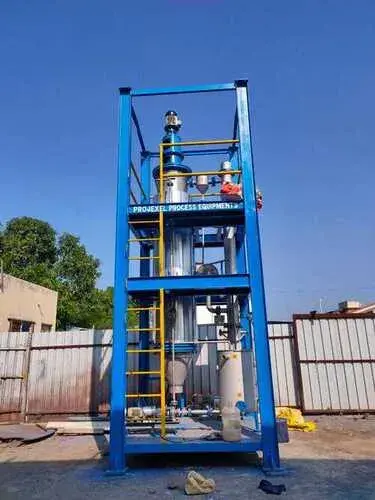

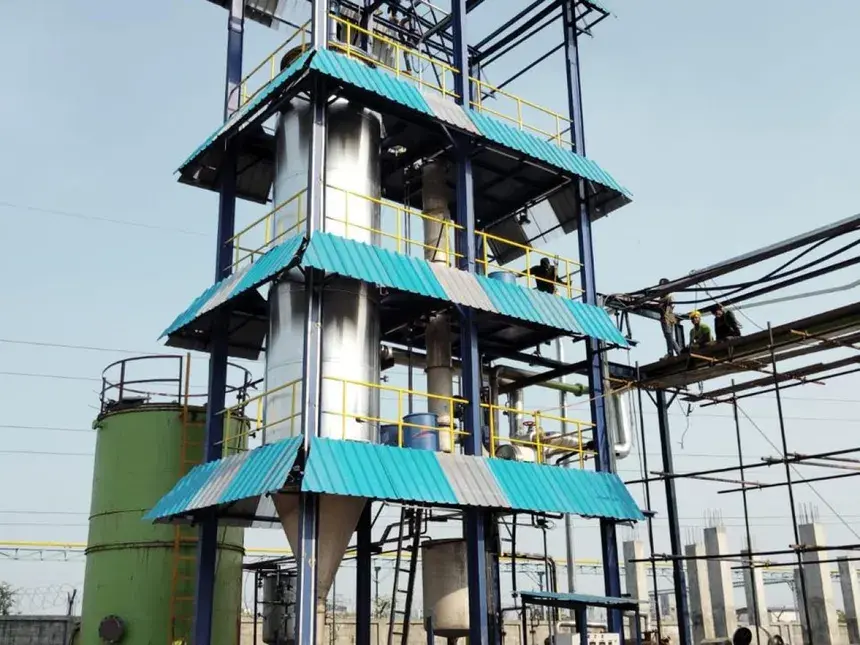

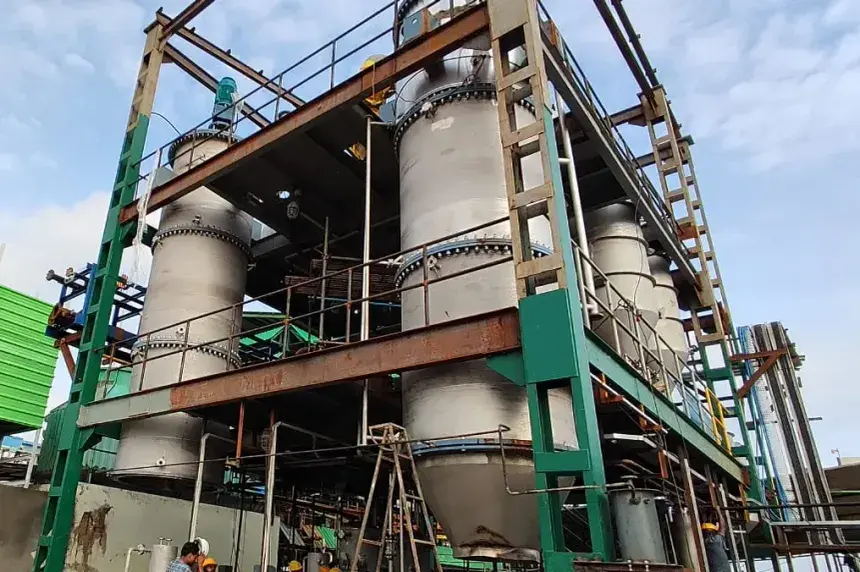

Installation Gallery
Auto-rotating — hover to pause, click thumbnails to jump, expand for full view.
1 / 4
Applications
Industries Served
Our Agitated Thin Film Dryer (ATFD) is deployed across a wide range of industrial and municipal applications.
ZLD salt-drying final stagePharmaceutical mother-liquor dryingChemical salt recoveryTextile wastewater dye/salt recoveryFood industry byproduct dryingETP high-TDS concentrate treatment
